ZGYX-420/410ABD Down The Hole drill rig

2013/5/5

ZGYX-420A/B/D Surface Down The Hole Drill Rig

Product Features

Power pack, Yuchai 4 cylinder engine YC4D80 or 30 kw electric motor. 3m x 76mm (A type) or (j) 68mm (B type) Drill pipe sub-categorized as with dust collector and/or heavy duty tramming motor.

■ All structural parts were reinforced .

■ Dual Cycloid motor developed by Zega instead of original steel ball motor for better quality of rotation unit with more compact design and less jamming.

Torque much improved for larger hole size range drilling.

■ High-performance wet pre-air filter system developed by Zega together with dry air filter for three-stage air filtering system to protect diesel engine better.

■ New design for more convenient maintenance and better appearances.

■ Dust collector model for dust-free drilling. More environment friendly and energy saving.

■ Heavy duty tramming motor model ensuring better climbing capability and more reliable quality.

01.Rotation unit driven by dual cycloid motor developed by Zega, more powerful and less jamming.

02.Standard reinforced travel motor, powerful climbing ability, reliable quality.

03.Zega own designed guiding idler and hydraulic traction tramming system helps chains stay on tracks.

04.All drill rigs forgery protection tagged for easy inquiry at any time.

ZGYX-420A、B、D Technical Specifications

Work Pressure : 0.7-2 Mpa

Air Consumption : 8-20 m3/min

Hole Range : 90-130 mm

Hammer : A: 3.5" inches B: 4" inches

Hole Depth (Max.)： 30 m

Drill Pipe Length: 3000 mm

Drill Pipe Dia ： A: 68 mm B: 76 mm

Max. Climbility： 30°

Tramming Speed ： 2-3.2 Km/h

Rotation Speed (Max.) ：0-80 rpm

Rotation Torque ： 1970 N.m

Weight： 5290 kg

Dimension： 5100 x 2260 x 2550 mm

Power Yuchai YC4D80 Diesel Engine

D：30KW-4 Electric Motor

Dust Collector (Option)

Heavy Duty Tramming Motor (Standard)

Recommended Air compressors：

High altitude:250SCY-17 Normal altitude : 177SCY-17,191SCY-17

Diesel portable medium pressure: 178SCY- 14.5,138SCY-14.5,139SCY-14.5,190SCY-16

Diesel portable high pressure: 177SCY-17,250SCY-19,260SCY-21

electric portable medium pressure:90SDY-14.5, 132SDY-13

Electric portable high air pressure : 185SDY-17, 200SDY-21

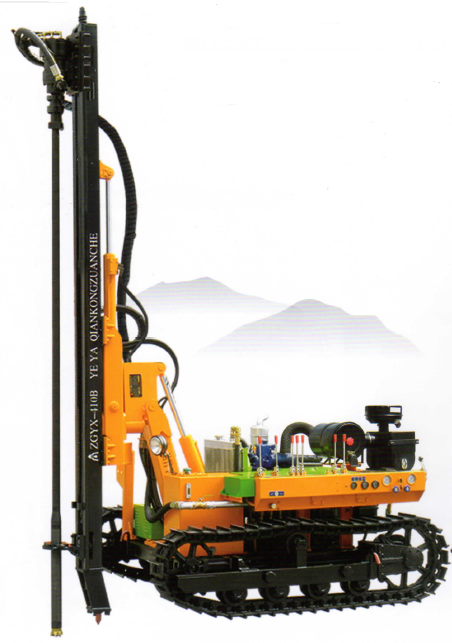

ZGYX-410A/B/D Surface Down The Hole Drill Rig

Product Features

Type A equipped with single cylinder Diesel engine Changfa S1125, 2 cylinders Yuchai 2115 diesel engine for Type B and Type D 15 kw electric motor.

Each type further categorized as standard or with heavy duty tramming motor or dust collector, etc. Dust collector maximizing dust free operation to meet

environment protection requirement. Heavy duty tramming motor with stronger torque and gear box for better climbing capabilities and improved quality.

Easy removable protection hood improving both safety and appearance.

ZGYX-410A、B、D----Technical Specifications

Work Pressure	0.7-1.5 Mpa
Air Consumption	7-13 m3/min
Hole Range	83-115 mm
Hammer	3.5" inches
Hole Depth (Max.)	20 m
Drill Pipe Length	2000 mm
Drill Pipe Dia	60 mm
Max. Climbility	30°
Tramming Speed	1.8-3 Km/h
Rotation Speed (Max.)	0-100 rpm
Rotation Torque	970 N.m
Weight	3180 kg
Dimension	4650 x 1900 x 2600 mm
Power	A:Changfa S1125、B:YC2115-D:15KW-4 electric Motor
Dust Collector		(Option)
Heavy Duty Tramming Motor		(Standard)
